3000W High-power Continuous Green Fiber Laser With QBH Output Head

Brand Name : GD laser

Model Number : EO-LIGHT-CW-2

Certification : CE

Place of Origin : SHENZHEN, CHINA

MOQ : 1 set

Price : price negotiable

Payment Terms : D/P, L/C

Supply Ability : 100 sets/month

Delivery Time : 20 work days

Packaging Details : Wooden case packing, 1 set/box

Central wavelength : 532

Average power : 3000W

Working mode : Continuous /modulation

Beam quality : 95%

Refrigeration mode : Water Cooling

Output head : QBH

Cabinet size : 1600*1600*1800

Contact Now

Product introduction

Gongda Laser has launched a high-power continuous green laser to solve problems such as severe splashing during welding of high reflectivity materials in the infrared band, using a scheme of all fiber fundamental frequency and external cavity doubling. With an output power of up to 3000W, it is currently the highest power continuous green laser source in China. It has advantages such as high repeatability, high absorption rate, less splashing, high stability, and high beam quality.

Product features

1.Laser welding of high reflective materials (copper/aluminum);
2.Semiconductor material processing (silicon carbide, etc);
3.3D printing and cladding of copper metal;
4.Superhard material cutting;
5.Welding of power battery busbars, connecting pieces, etc.

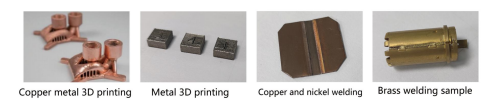

Product application

1. Cutting and welding of high reaction materials such as copper

2. Copper metal 3D printing

3000W High-power Continuous Green Fiber Laser With QBH Output Head

Technical parameter

NO. Characteristic Unit Min. Typ. Max.
1 Average power W 3000 3050
2 Working mode - Continuous /modulation
3 Polarization state - random
4 Central wavelength Nm 529 532 535
5 Modulation frequency kHz 20
6 Long term power stability % -1.5 ﹢1.5
7 extinction ratio dB 15
8 Bundle quadrature BPP mm*mrad 8
9 Beam quality % 90 95 100
10 Output head QBH
11 Core diameter um 200
12 working voltage AVC V 380
13 Maximum power consumption KW 23
14 Cabinet size mm 1600*1600*1800
15 Refrigeration mode water-cooling
16 Cooling water temperature ℃ 23 24 25
17 Cooling water flow rate L/min 50
18 Cooling water interface ∅33mm

Product size

3000W High-power Continuous Green Fiber Laser With QBH Output Head
